About this item

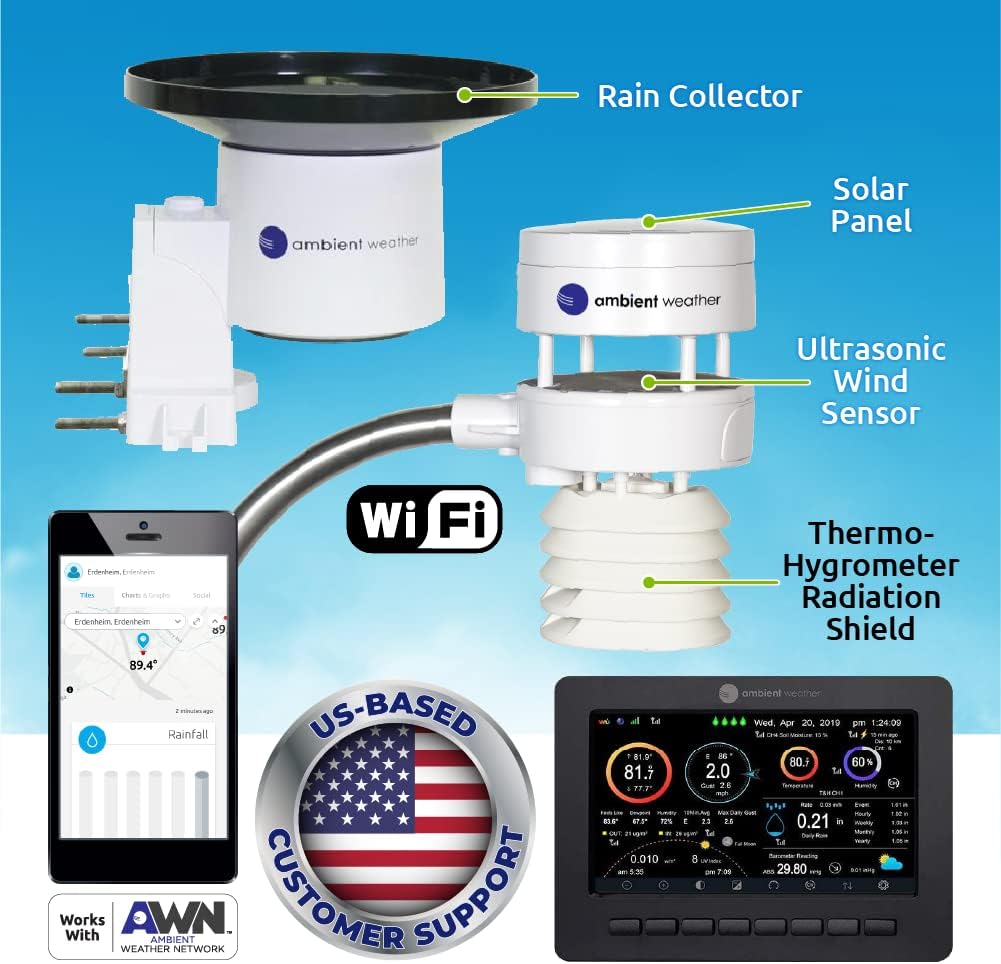

COMPLETE WEATHER STATION: (1) Ultrasonic Sensor Array, (1) Rain Cup, (1) Indoor/Outdoor Thermo-hygrometer-barometer, and (1) TFT Full Color LCD Display
ALL-IN-ONE SENSOR ARRAY: No moving parts, fast and easy set-up, and real-time updates to weather conditions every five seconds
SMART HOME READY: Set up alerts, access your data remotely, and program your home based on weather conditions using IFTT, Google Home, Alexa, and more
ENHANCED WIFI: Enables your station to transmit its data wirelessly to the world’s largest personal weather station network (optional setting)
JOIN THE COMMUNITY: Connect to Ambient Weather Network to customize your dashboard tiles, share hyperlocal weather conditions via social feeds and create your own forecasts (coming soon)
Product Description
The Ambient Weather WS-5000 Ultrasonic Smart Weather Station is the most sophisticated home and light industrial weather station we have ever created. Our smart wind meter has no moving parts to wear out, and includes a revolutionary ultrasonic anemometer that is more sensitive to changes in wind speed and direction and transmits faster than traditional wind cup designs.
Connect to AWN
Responsive Design
Weather on the Go
Extensive Data & Alerts
Virtual Assistants
The Ambient Weather skill for Alexa and Google Assistant provides Ambient Weather personal weather station owners with the ability to get real-time, and past weather information generated by the devices they have been linked to.
IFTTT Applets
The AmbientWeather server features a handy timeline for tracking IFTTT triggered web services, applets, and devices like blinds, rain gauges, and lights.
API & Third Party Apps
Developers, retrieve your own real-time and historical personal weather station JSON formatted data, or build 3rd party apps and get data from multiple devices.
Weather Networks
Connect to the world’s largest personal weather station network, Weather Underground, in addition to WeatherCloud and PWSWeather.
Weather Station Features & Specifications
TFT Full Color LCD Display
Our sleek desktop display is freestanding or can be mounted on a wall. This vibrant, dynamic LCD display is easy to read day or night, features a light or dark colored background, and automatically controlled brightness settings based on time of day. Connect additional displays (sold separately).
Measured parameters combine with calculated data:
‘Feels Like’ Temperature (Wind Chill and Heat Index)
Dew Point
Gust (the maximum wind speed sampled once per second in the 16 second update period)
10 Minute Wind Speed and Direction Average
Sunrise, Sunset, Moon Phase
Forecast, And more!
The WS-5000 also displays minimum and maximum conditions with time and date stamp, historical archived data, which can be exported to SD Card (optional, not included) for advanced data analysis in Excel. The SD Card is also used for firmware updates.
Ultrasonic Sensor Array
The wireless sensor array features a pagoda thermo-hygrometer radiation shield with passive aspiration for the upmost accuracy, a bubble level for plumb installation, and a solar panel.
It connects to the console via RF (915 MHz) up to 1000 feet line of sight in open air (300 feet under most conditions). The wireless signal will not pass through solid metal, earth, or ground.
The sensor array mounts to any pole between 1.25 and 2″ diameter with adaptive mounting bracket and U-Bolt design that can be tightened to your mounting pole (not included).
Extra Large Rain Cup
The extra-large rain cup ensures better accuracy. Since the sensor is wireless, it can be placed close to the ground, and the removable lid makes for easy service and maintenance.
The Indoor Thermo-Hygrometer-Barometer
The WH32B indoor sensor will monitor temperature, humidity, and barometric pressure. One sensor is included with the WS-5000 weather station system.
Optional Sensors (sold separately)
The WS-5000 supports the following optional sensors:
(8) WH31E, WH31P, WH31PF, or WH51RF
(1) WH31L-AA
(8) WH31SM
(8) WH51LW
(4) WH31LA
(1) PM25
(1) PM25IN or AQIN.
The WH31E, WH31P, WH31PF, and WH51RF share the same 8 total channels and display on the console.
The additional sensor models do not display on the console, but pass-through to the Ambient Weather Network and can be viewed there.
