Renogy 10 Amp 12V/24V PWM Negative Ground Solar Charge Controller

Description

About this item

Smart 4-Stage 12V/24V Solar Charge Controller: Renogy charge controller maximizes Battery Life & Solar Efficiency, this advanced pwm solar charge controller utilizes intelligent 4-stage charging (Bulk/Boost/ Float/Equalization) to optimize power delivery for AGM, Gel, Flooded and Lithium batteries. RV solar charge controller prevents overcharging and gas buildup while achieving 30% longer battery lifespan compared to basic charge controllers

Advanced Load Management & System Protection：Renogy Wanderer 10A charger controller offers unparalleled flexibility with manual/automatic/timed load control modes, allowing direct parameter adjustment for lighting, pumps and other DC loads. Solar panel charge controller has overcharge/over-discharge/ overload/ short-circuit/reverse polarity/temperature compensation) with LCD error codes provide complete system security. Negative ground design making solar panel charge controller for RV and Marine 90% safer than competitors

High-Efficiency Renogy Solar Power Controller: Industry-Leading <10mA Self-Consumption, unlike standard charge controllers that drain your batteries, our Wanderer 10A Controller ultra-low power design maximizes every watt from your solar panels. Renogy Renewable energy controllers compact size (5.2×3.1 inches) fits perfectly in RV electrical cabinets or marine control panels. With IP32 waterproof rating, this solar controller withstands harsh outdoor conditions while maintaining optimal performance

Versatile Solar Charge Controller : Universal 12V/24V Battery Compatibility, whether you need a solar controller for lithium batteries (with manual activation settings) or traditional AGM/Gel systems delivers precise charging for all types. Lithium solar charge controller has rugged construction and wide operating temperature range make the go-to choice for professional solar installations and DIY off-grid projects alike

Smart Monitoring Renogy Charge Controller: Real-Time Data Tracking & USB Charging, upgrade your solar power controller with our backlit LCD that clearly displays voltage, current, and system status. The integrated RS232 port connects to Renogy’s DC Home App via BT-1 Bluetooth module for remote monitoring. Plus, the 5V/2A USB port lets you charge phones/tablets directly – a must-have feature for 12V solar charge controllers used in off-grid living

From the manufacturer

Renogy Wanderer Charger Controller

Optional component requires a separate purchase

Renogy BT-1 Bluetooth Module

• Wirelessly monitor and control compatible solar charge controllers via Bluetooth
• Communication Protocol: RS232
• Port Type: RJ12
• Cable Length: 16.4ft
• Signal Range: up to 82ft

Renogy Wanderer

The Renogy 10A Wanderer solar charge controller integrates efficient PWM charging to increase battery life and improve system performance.

With a simple interface for ease of use, this controller comes equipped with fully comprehensive self-diagnostics and electronic protection functions to prevent damage from installation mistakes or system faults. Designed for off-grid solar applications, this advanced charge controller is compatible with various types of 12V/24V batteries, including Lithium!

Note: Please set the voltage manually to charge lithium batteries.

• Rated Charge Current: 10A
• Max Gauge Size: Up to 12AWG
• Self-Consumption: <10mA
• Max. PV Input Voltage:130W / 12V; 260W / 24V
• Working Temperature: -31°F – 113°F

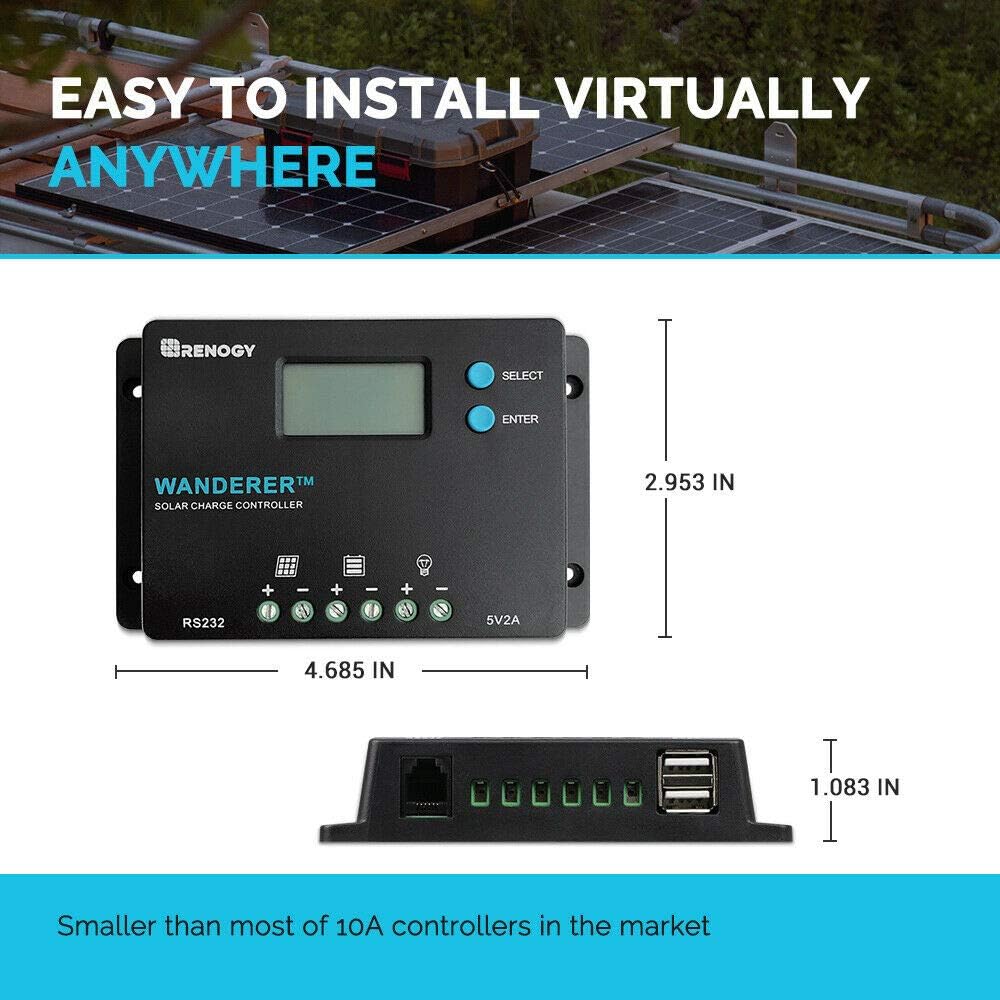

• Dimensions: 4.68 x 2.95 x 1.08 in
• Weight: 0.27 lbs
• Grounding Type: Negative

Intelligent protection against reverse polarity, overcharging, short-circuit, and reverse current.

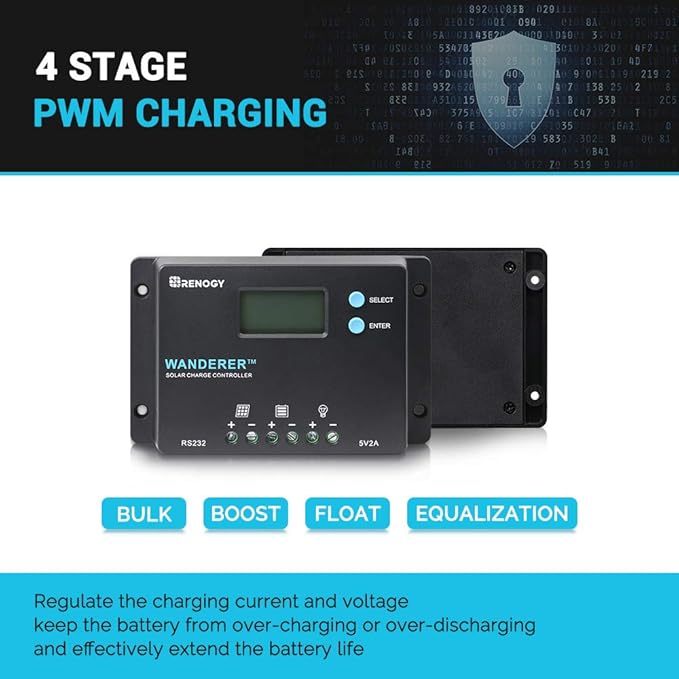

Smart 4 Stage PWM charging (Bulk, Boost, Float, and Equalization) increases battery life.

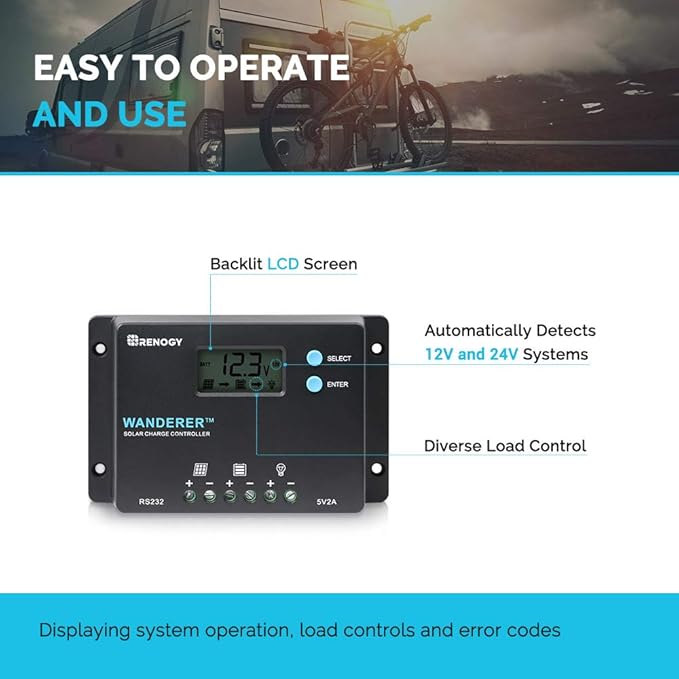

Blacklit LCD screen for displaying system operation, diverse load control and error codes.

Compact in size makes it easy to install virtually anywhere.

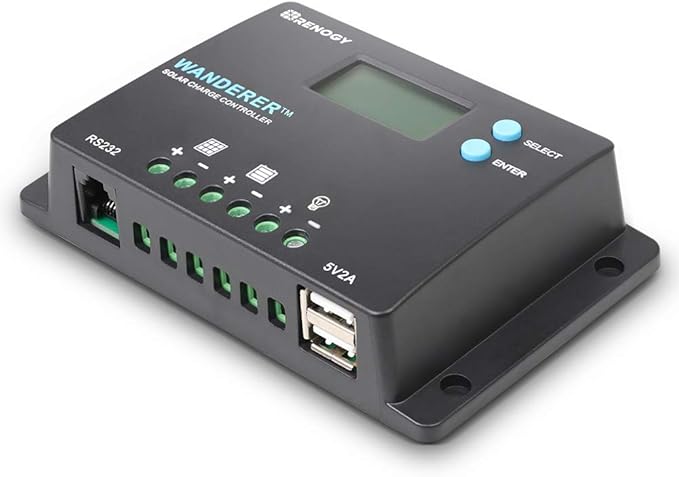

Layout

1. LCD Screen
2. Select Button
3. Enter Button
4. USB Ports
5. Load Terminal
6. Battery Terminal
7. PV Terminal
8. RS232 Communication Port

RS232 Communication Port

Integrated RS232 port allows communication with BT-1 Bluetooth module (Not Included) and usage of Renogy DC Home App.

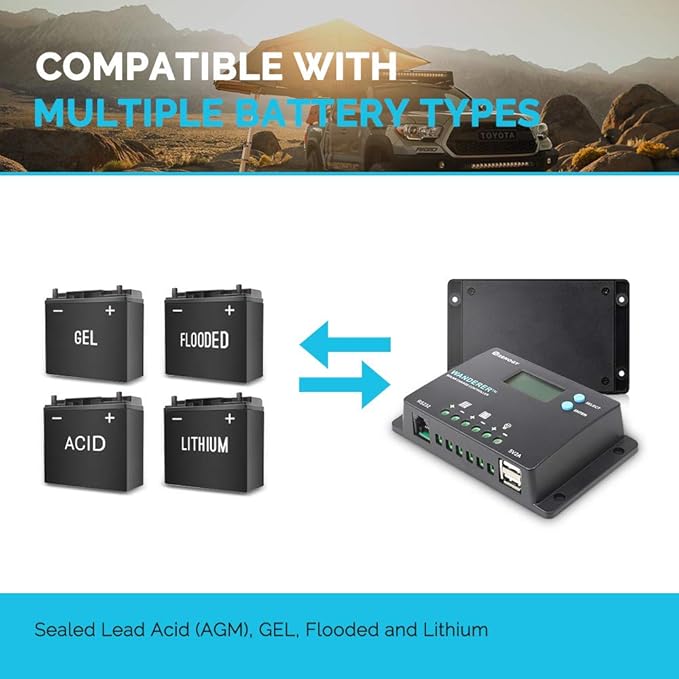

Compatible Battery Types

1. Sealed
2. Gel
3. Flooded
4. Lithium (Please set the charging parameters prior to the use.)

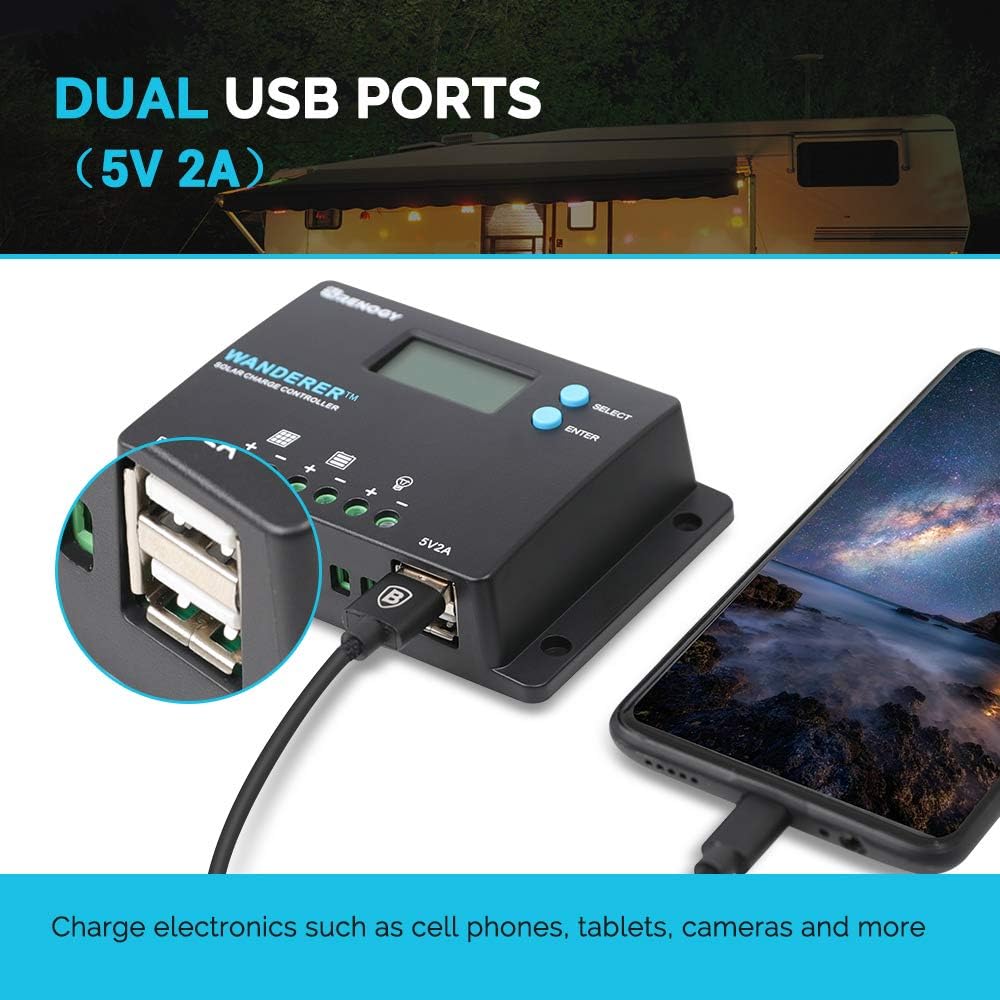

USB Port

5V 2A USB Ports

Product Description

PWM (Pulse-Width Modulation) charge controllers are an essential component of solar power systems, as they help to regulate the amount of energy that is transferred from the solar panels to the battery. The Renogy Wanderer PWM Charge Controller constantly monitors the battery voltage and adjusts the pulse width accordingly, so that the battery is charged safely and efficiently, extending their lifespan and improving the overall performance of the system. It is the most cost-effective option for those seeking an affordable, yet feature-rich charge controller. With a price point that is far lower than MPPT charge controllers on the market, the Wanderer offers exceptional value for its price. It supports multiple battery types including Gel, Sealed, Flooded, Lithium, and offers various load control modes for optimized efficiency. The LCD screen displays real-time charging parameters and error codes for easy monitoring. The controller also features a rugged aluminum housing with eight built-in electronic protections. This product is perfect for anyone in need of a reliable and efficient charge controller for small off-grid systems. With its affordable price point, user-friendly interface, and durable construction, the Renogy Wanderer is an excellent choice for those seeking a high-quality charge controller without breaking the bank.
