Description
About this item
100% Analog Guitar Volume/Wah/Expression Pedal, Switchable Volume/Wah control by the Footswitch
Classic Wah-Wah Tone with WARM & CLASSIC Range Guitar Pedal, Q & TONE controls
Active Volume Control for Keeping Lossless Tone Guitar Effects Pedal
LEDs shows Guitar pedal status in real time
True Bypass, Independent EXP Out and Tuner Out, 9V DC or 9V Battery Power Supply(Not Incl)

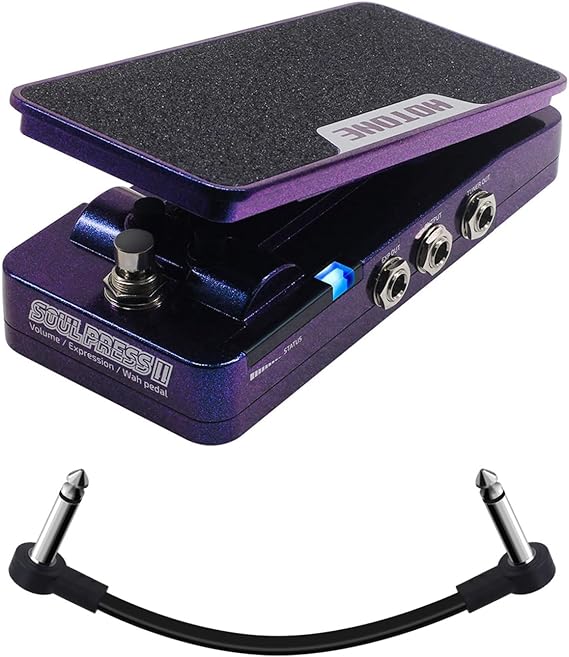

NOTE: There will be 1 PCS Additional 15 CM TS Cable included in box, Please check once you get the package
Product Description
- 1. INPUT: 1/4″mono audio jack
- 2. MODE: For selecting 3 modes with LEDs
- 3. TONE: For selecting wah filter range
- 4. Q: For adjusting wah filter frequency width
- 5. DC IN: Plug in 9V DC adapter (can also be powered by 9V battery)
- 6. Footswitch: Switch between on/off status or active volume/wah in V/W mode

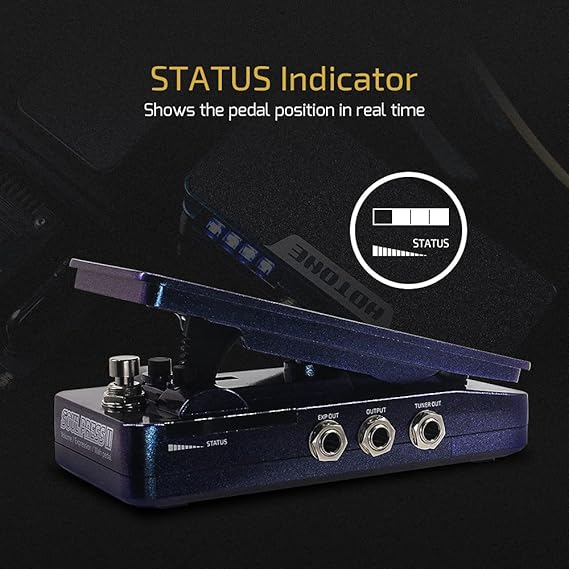

- 7. STATUS: A set of LEDs showing the current pedal position
- 8. EXP OUT: 1/4” TRS jack, for connecting to another device
- 9. OUTPUT: 1/4″mono audio jack
- 10. TUNER OUT: 1/4″ mono audio jack for tuner
Specifications
- Input Impedance: 1MΩ
- Output Impedance: 100Ω
- Wah Range Selector: WARM—290Hz to 1.4kHz
- CLASSIC—360Hz to 1.8kHz
- Current Consumption: Max 30mA
- Dimensions: 3.19inches (W) x 6.38inches (D) x 2.01inches (H)
- Weight: 28.35ounce
Active Volume Pedal Design
The newly-designed active volume circuit keeps you free of dreaded on this guitar effects pedal. Through internal structural optimization, we improved the circuit structure stability, greatly reducing noise interference caused by intense use for this guitar pedal
Flexible Wah Tone Guitar Pedal
Q and TONE adjustments give you a wider tone selection on this guitar effects pedal, from soothing moods to a wild roars, all the emotion available in one guitar pedal, represent an absolute improvement in tone and functionality.

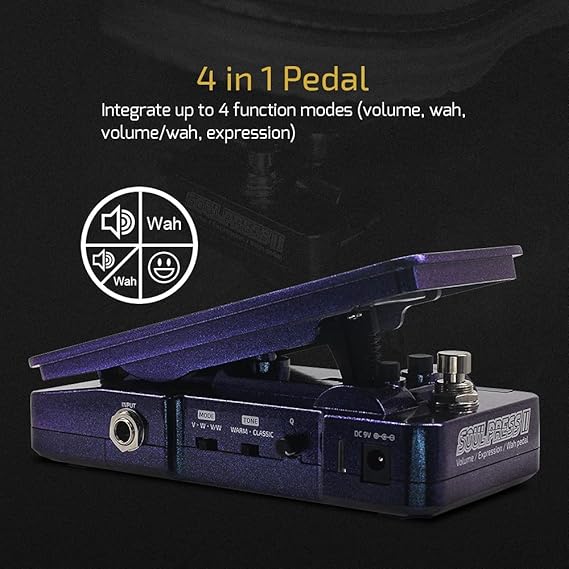

4 Function Modes Guitar Effects Pedal
In V mode or W mode, you can turn on the volume effect control or wah effect individually, or bypass the function. The V/W mode combines the volume and wah into one, and you can switch between them with the footswitch on the top of the guitar effects pedal. No matter in which mode, the expression function is effective on this guitar pedal

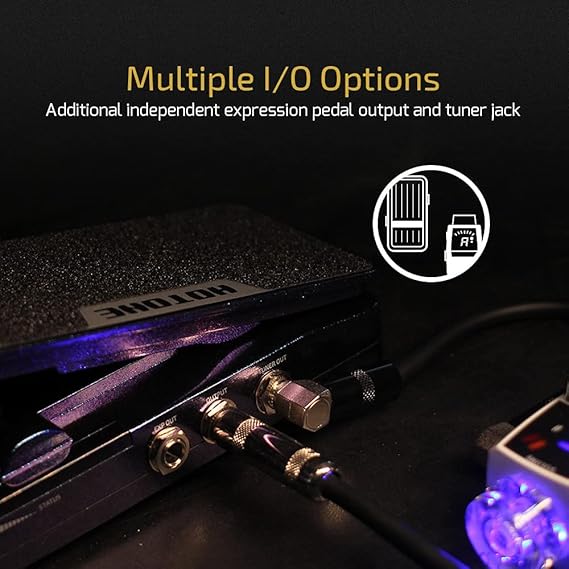

Multiple I/O Options On Guitar Pedal
Additional independent expression pedal output lets you control the features of other effects in real time; the external tuner jack moves your tuner outside of the effect chain for this wah pedal
Matters Need Attention
NOTE: There will be 1 PCS Additional 15 CM TS Cable included in box, Please check once you get the package :))
